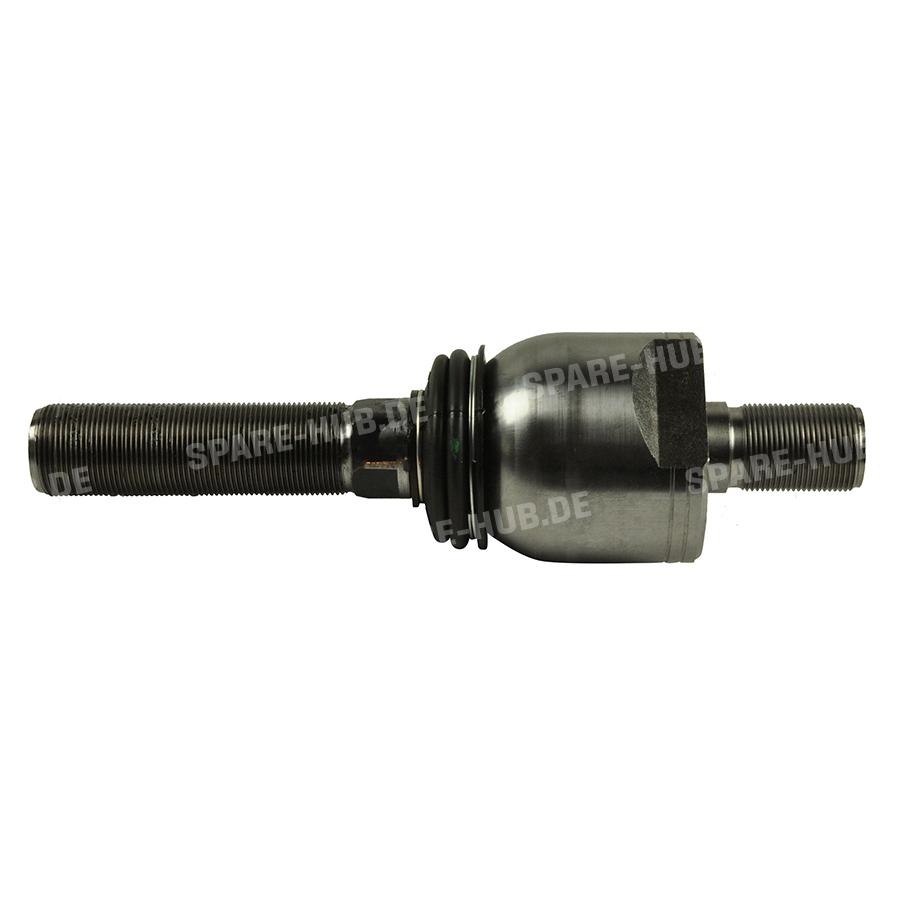

BALL JOINT (AL224140)
excl. VAT 59.20 €
Shipping
3-7 business days europe-wide via UPS/GLS/DPD/DHL under 25kg. World shipping may vary. Express shipping available upon request. Shipping price calculator kg-based available before payment at checkout.
Warranty
6-months free warranty included in price. Extended warranty up to 36 months for selective categories available upon request.
Payment
Online-payment or proforma-payment with 0%VAT available within the EU after validation of your VAT Nr.
Technical support
Via WhatsApp, Call or E-Mail available in 5 languages for helping you to select the correct spare part and place the order.
Import duties
tax and charges are not included in the price listed or freight cost. These charges are on the buyer's side.
Description

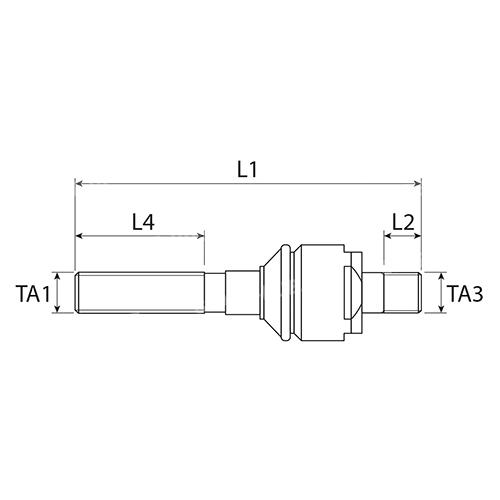

M28 x 1.5 RH - M26 x 1.5 RH | Thread type: Metric | Thread - TA1: M28 x 1.5 RH | Thread - TA3: M26 x 1.5 RH | L1 (mm): 235 | L2 (mm): 33 | L4 (mm): 90
Specification
- Reference no. 115540
- Brand John Deere, Same, Lamborghini, Deutz
-
Part number
AL224140, AL209419, AL209420, AL160543, AL160202
- Weight 2.22 KG
Compatible Vehicles & Equipment
| Type | Make | Model | Series | Engine |
|---|---|---|---|---|
| Tractor | John Deere | 6515 (Europe) | 6005 | John Deere (DSPG) 6068D PowerTech |
| Tractor | John Deere | 6515 (Europe) | 6005 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6520 (Europe) | 6020 | John Deere (DSPG) 6068D PowerTech |
| Tractor | John Deere | 6520 (Europe) | 6020 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6520SE (Europe) | 6020 | John Deere (DSPG) 6068D PowerTech |
| Tractor | John Deere | 6520SE (Europe) | 6020 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6520SE (Europe) | 6020 | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6525 (Europe) | 6005 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6530PR (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 6615 (North America) | 6005 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6620 (Europe) | 6020 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6620 (Europe) | 6020 | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6820 (Europe) | 6020 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6620SE (Europe) | 6020 | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6715 (North America) | 6005 | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6920 (Europe) | 6020 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6920S (Europe) | 6020 | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 7130 (North America) | 7030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 7130PR (North America) | 7030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 7220 (Worldwide) | 7020 | John Deere (DSPG) 6068T |
| Tractor | John Deere | 7520 (Mexico) | 7020 | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6620 (Europe) | 6020 | UNKNOWN |
| Tractor | John Deere | 6615 (South America) | 6005 | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6534PR (Europe) | 6030 | John Deere (DSPG) 4045H PowerTech Plus |
| Tractor | John Deere | 6520SE (Europe) | 6020 | UNKNOWN |
| Tractor | John Deere | 6520 (Europe) | 6020 | UNKNOWN |
| Tractor | John Deere | 6515 (Europe) | 6005 | UNKNOWN |
| Tractor | Same | Diamond II 260 | Diamond | Deutz BF 6M 1013 |
| Tractor | Same | Diamond II 230 | Diamond | Deutz BF 6M 1013 |
| Tractor | Same | Diamond 260 | Diamond | Deutz BF 6M 1013 |
| Tractor | Same | Diamond 230 | Diamond | Deutz BF 6M 1013 |
| Tractor | Lamborghini | Victory Plus 230 | Victory | Deutz BF 6M 1013 ECP |
| Tractor | Lamborghini | Victory Plus 260 | Victory | Deutz BF 6M 1013 ECP |
| Tractor | Lamborghini | Victory 230 | Victory | Deutz BF 6M 1013 FC |
| Tractor | Lamborghini | Victory 260 | Victory | Deutz BF 6M 1013 FC |
| Tractor | Deutz | 160 | Agrotron MKIII | Deutz BF 6M 1013 E |
| Tractor | Deutz | 175 | Agrotron MKIII | Deutz BF 6M 1013 EC |
| Tractor | Deutz | 200 | Agrotron MKIII | Deutz BF 6M 1013 EC |
| Tractor | Deutz | 230 | Agrotron MKIII | Deutz BF 6M 1013 FC |
| Tractor | Deutz | 260 | Agrotron MKIII | Deutz BF 6M 1013 FC |
| Tractor | Deutz | 260 | Agrotron MKII | Deutz BF 6M 1013 FC |
| Tractor | Deutz | 160 | Agrotron MKII | Deutz BF 6M 1013 E |
| Tractor | Deutz | 175 | Agrotron MKII | Deutz BF 6M 1013 EC |
| Tractor | Deutz | 200 | Agrotron MKII | Deutz BF 6M 1013 EC |
| Tractor | Deutz | 230 | Agrotron MKII | Deutz BF 6M 1013 FC |
| Tractor | John Deere | 7530PR (North America) | 7030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 7530PR (Europe) | 7030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 7530E PR (Europe) | 7030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 7515 (Venezuela) | 7015 | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 7430PR (North America) | 7030 | UNKNOWN |
| Tractor | John Deere | 7430PR (Europe) | 7030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 7430E PR (Europe) | 7030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 7330PR (North America) | 7030 | UNKNOWN |
| Tractor | John Deere | 7330 (North America) | 7030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-2104 (China) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-2104 (China Pin-1YH) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-2054 (China) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-2054 (China - PIN 1YH) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-1904 (China) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-1854 (China-PIN 1YH) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-1854 (China) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-1704 (China) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-1654 (China) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6J-1654 (China -PIN 1YH) | 6J (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6930PR (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 6930 (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6920S (Europe) | 6020 | UNKNOWN |
| Tractor | John Deere | 6920 (Europe) | 6020 | UNKNOWN |
| Tractor | John Deere | 6830PR (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 6830 (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6820 (Europe) | 6020 | UNKNOWN |
| Tractor | John Deere | 6210J (South America) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6210J (Mongolia/Asia) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6205J (South America) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6205J (Mongolia/Asia) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6190J (South America) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6185J (Mongolia/Asia) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6185J (Mongolia - PIN 1YH) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6180J (South America) | 6J | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6175R (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVS |
| Tractor | John Deere | 6175R (Europe) | 6R | John Deere (DSPG) 6068H PowerTech PVS |
| Tractor | John Deere | 6170M (North America) | 6M | John Deere (DSPG) 6068H PowerTech PVX |
| Tractor | John Deere | 6170R (Europe) | 6R | John Deere (DSPG) 6068H PowerTech PVX |
| Tractor | John Deere | 6170R (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVX |
| Tractor | John Deere | 6170J (South America) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6170M (Europe) | 6M | UNKNOWN |
| Tractor | John Deere | 6165J (South America) | 6J | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6165J (Mongolia/Asia) | 6J | John Deere (DSPG) 6068H PowerTech Tier2 (4V-CR) |
| Tractor | John Deere | 6165J (Mongolia - PIN 1YH) | 6J | John Deere (DSPG) 6068H PowerTech |
| Tractor | John Deere | 6155RH (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVS |
| Tractor | John Deere | 6155R (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVS |
| Tractor | John Deere | 6155R (Europe) | 6R | John Deere (DSPG) 6068H PowerTech PVS |
| Tractor | John Deere | 6155J (Mexico) | 6J | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6150RH (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVX |
| Tractor | John Deere | 6150R (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVX |
| Tractor | John Deere | 6150R (Europe) | 6R | John Deere (DSPG) 6068H PowerTech PVX |
| Tractor | John Deere | 6150M (North America) | 6M | John Deere (DSPG) 6068H PowerTech PVX |
| Tractor | John Deere | 6150M (Europe) | 6M | UNKNOWN |
| Tractor | John Deere | 6150J (South America) | 6J | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6145R (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVS |
| Tractor | John Deere | 6145R (Europe) | 6R | John Deere (DSPG) 6068H PowerTech PVS |
| Tractor | John Deere | 6145J (South America) | 6J | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 6140R (North America) | 6R | John Deere (DSPG) 6068R PowerTech PVX |
| Tractor | John Deere | 6140R (Europe) | 6R | John Deere (DSPG) 6068H PowerTech PVX |
| Tractor | John Deere | 6140J (Mexico) | 6J | John Deere (DSPG) 6068T PowerTech |
| Tractor | John Deere | 1854 (China) | 04 (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 1654 (China) | 04 (China) | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6530 (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 6534 (Europe) | 6030 | John Deere (DSPG) 4045H PowerTech E |
| Tractor | John Deere | 6630 (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 7130 (North America) | 7030 | UNKNOWN |
| Tractor | John Deere | 7220 (Worldwide) | 7020 | UNKNOWN |
| Tractor | John Deere | 7230 (North America) | 7030 | John Deere (DSPG) 6068H PowerTech E |
| Tractor | John Deere | 7320 (Worldwide) | 7020 | UNKNOWN |
| Tractor | John Deere | 6630PR (Europe) | 6030 | John Deere (DSPG) 6068H PowerTech Plus |
| Tractor | John Deere | 7130PR (North America) | 7030 | UNKNOWN |
| Tractor | John Deere | 7230PR (North America) | 7030 | UNKNOWN |
| Tractor | John Deere | 7520 (Worldwide) | 7020 | UNKNOWN |
| Machine | John Deere | 6620 | 6000 | UNKNOWN |
