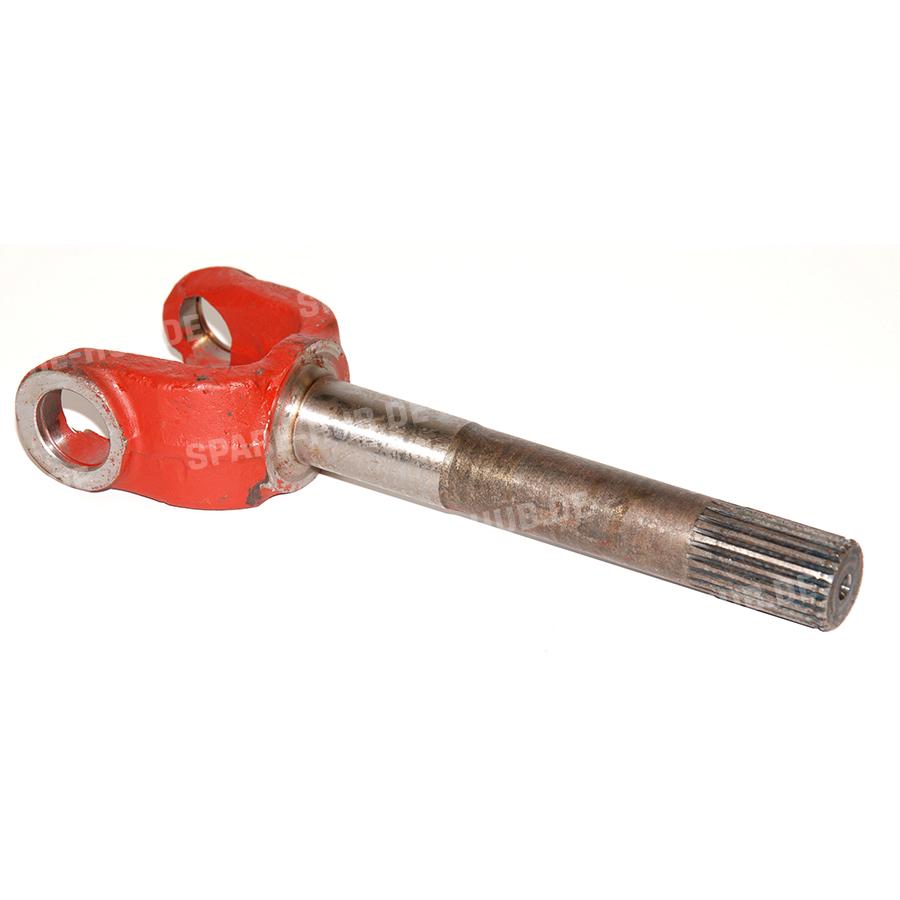

HALF SHAFT,U-JOINT (AL32883)
excl. VAT 253.65 €
Shipping
3-7 business days europe-wide via UPS/GLS/DPD/DHL under 25kg. World shipping may vary. Express shipping available upon request. Shipping price calculator kg-based available before payment at checkout.
Warranty
6-months free warranty included in price. Extended warranty up to 36 months for selective categories available upon request.
Payment
Online-payment or proforma-payment with 0%VAT available within the EU after validation of your VAT Nr.
Technical support
Via WhatsApp, Call or E-Mail available in 5 languages for helping you to select the correct spare part and place the order.
Import duties
tax and charges are not included in the price listed or freight cost. These charges are on the buyer's side.
Description

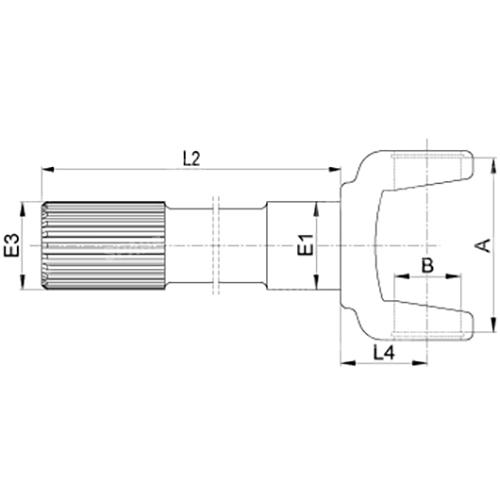

EXTERIOR | Position: 4 | A (mm): 83 | B (mm): 27 | C (mm): n/a | D (mm): n/a | E1 (mm): 28 | E2 (mm): n/a | E3 (mm): 27.6 | F (mm): n/a | G (mm): n/a | H (mm): n/a | L1 (mm): - | L2 (mm): - | L4 (mm): 58
Specification
- Reference no. 114432
- Brand Case-IH, Fendt, John Deere, Deutz
-
Part number
AL32883, 81927571, 3216599R91, F138.314.020.360, 1927571ZP, 04322703, 5214110, F138314020360, 4322703
- Weight 1.83 KG
Compatible Vehicles & Equipment
| Type | Make | Model | Series | Engine |
|---|---|---|---|---|
| Tractor | Case-IH | 485 | 85 | I.H. D179 |
| Tractor | Case-IH | 533 | 33 | I.H. D155 |
| Tractor | Case-IH | 540 | 40 | I.H. D155 |
| Tractor | Case-IH | 585 | 85 | I.H. D206 |
| Tractor | Case-IH | 633 | 33 | I.H. D179 |
| Tractor | Case-IH | 640 | 40 | I.H. D179 |
| Tractor | Case-IH | 644 | 44 | I.H. D206 |
| Tractor | Case-IH | 733 | 33 | I.H. D206 |
| Tractor | Case-IH | 740 | 40 | I.H. D206 |
| Tractor | Case-IH | 743 | 43 | I.H. D239 |
| Tractor | Case-IH | 744 | 44 | I.H. D239 |
| Tractor | Case-IH | 745S | 45 | I.H. D239 |
| Tractor | Case-IH | 785 | 85 | I.H. D246 |
| Tractor | Case-IH | 833 | 33 | I.H. D239 |
| Tractor | Case-IH | 840 | 40 | I.H. D239 |
| Tractor | Case-IH | 844 | 44 | I.H. D246 |
| Tractor | Case-IH | 844S | 44 | I.H. D268 |
| Tractor | Case-IH | 856 | 56 | I.H. DT239 |
| Tractor | Case-IH | 885 | 85 | I.H. D268 |
| Tractor | Case-IH | 940 | 40 | I.H. D239 |
| Tractor | Case-IH | 485XL | 85 | I.H. D179 |
| Tractor | Case-IH | 585XL | 85 | I.H. D206 |
| Tractor | Case-IH | 743XL | 43 | I.H. D239 |
| Tractor | Case-IH | 745XL | 45 | I.H. D239 |
| Tractor | Case-IH | 785XL | 85 | I.H. D246 |
| Tractor | Case-IH | 844XL | 44 | I.H. D246 |
| Tractor | Case-IH | 856XL | 56 | I.H. DT239 |
| Tractor | Case-IH | 885XL | 85 | I.H. D268 |
| Tractor | Fendt | 102S | Farmer 100 | MWM D325-3 |
| Tractor | Fendt | 103 | Farmer 100 | MWM D225-3 |
| Tractor | Fendt | 104S | Farmer 100 | MWM D226-3 |
| Tractor | John Deere | 1840 (Europe) | 40 | |
| Tractor | Fendt | 108S | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 303 | Farmer 300 LS(A) | MWM D226-3.2 |
| Tractor | Fendt | 305 | Farmer 300 LS(A) | MWM D227-4.2 |
| Tractor | Fendt | 306 | Farmer 300 LS(A) | MWM D226-4.2 |
| Tractor | Fendt | 303 | Farmer 300 LS(A) | MWM TD226-B3 |
| Tractor | Fendt | 308 | Farmer 300 LS(A) | MWM D226-4.2 |
| Tractor | Fendt | 309 | Farmer 300 LS(A) | MWM TD226-4.2 |
| Tractor | Fendt | 310 | Farmer 300 LS(A) | MWM TD226-4.2 |
| Tractor | Fendt | 311 | Farmer 300 TURBOMATIK | MWM D226-B6 |
| Tractor | Fendt | 311 | Farmer 300 LS(A) | MWM D226-6.2 |
| Tractor | Fendt | 312 | Farmer 300 TURBOMATIK | MWM TD226-B6 |
| Tractor | Fendt | 312 | Farmer 300 LS(A) | MWM D226-B6 |
| Tractor | Fendt | 104LS | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 104LSA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 105LS | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 105LSA | Farmer 100 | MWM D225-4.2 |
| Tractor | Fendt | 106LS | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 106LSA | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 108LS | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 108LSA | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 102 | Farmer 100 | MWM D325-3 |
| Tractor | Fendt | 102SA | Farmer 100 | MWM D325-3 |
| Tractor | Fendt | 102S | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 102SA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 102LS | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 102LSA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 103S | Farmer 100 | MWM D225-3 |
| Tractor | Fendt | 103SA | Farmer 100 | MWM D225-3 |
| Tractor | Fendt | 103S | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 103SA | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 103LS | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 103LSA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 104SA | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 104S | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 104SA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 105 | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 105SA | Farmer 100 | MWM D225-4 |
| Tractor | Fendt | 105S | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 105SA | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 105S | Farmer 100 | MWM D225-4 |
| Tractor | Fendt | 105SA | Farmer 100 | MWM D225-4.2 |
| Tractor | Fendt | 106S | Farmer 100 | MWM D225-4 |
| Tractor | Fendt | 106S | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 106S | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 106SA | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 106SA | Farmer 100 | MWM D225-4 |
| Tractor | Fendt | 106SA | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 108S | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 108SA | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 108SA | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 304 | Farmer 300 LS(A) | MWM TD226-B3 |
| Tractor | Fendt | 305 | Farmer 300 LS(A) | MWM D226-4.2 |
| Tractor | Fendt | 305 | Farmer 300 LS(A) | MWM D226-B4 |
| Tractor | Fendt | 306 | Farmer 300 LS(A) | MWM D226-B4 |
| Tractor | Fendt | 307 | Farmer 300 TURBOMATIK | MWM D226-B4 |
| Tractor | Fendt | 307 | Farmer 300 C | Deutz BF 4M 1012 EC |
| Tractor | Fendt | 308 | Farmer 300 LS(A) | MWM TD226-B4 |
| Tractor | Fendt | 308 | Farmer 300 TURBOMATIK | MWM TD226-B3 |
| Tractor | Fendt | 308 | Farmer 300 C | Deutz BF 4M 1012 EC |
| Tractor | Fendt | 309 | Farmer 300 LS(A) | MWM TD226-B4 |
| Tractor | Fendt | 309 | Farmer 300 TURBOMATIK | MWM TD226-B4 |
| Tractor | Fendt | 309 | Farmer 300 C | Deutz BF 4M 1012 EC |
| Tractor | Fendt | 310 | Farmer 300 LS(A) | MWM TD226-B4 |
| Tractor | Fendt | 310 | Farmer 300 TURBOMATIK | MWM TD226-B4 |
| Tractor | Fendt | 311 | Farmer 300 LS(A) | MWM D226-B6 |
| Tractor | Deutz | 6806 | D 06 | Deutz F 4L 912 |
| Tractor | Deutz | 7206 | D 06 | Deutz F 4L 912 |
| Tractor | Case-IH | 278 | 78 | I.H. D246 |
| Tractor | Case-IH | 385 | 85 | I.H. D155 |
| Tractor | Case-IH | 584 | 84 | I.H. D206 |
| Tractor | Case-IH | 684 | 84 | I.H. D239 |
| Tractor | Case-IH | 685 | 85 | I.H. D239 |
| Tractor | Case-IH | 685XL | 85 | I.H. D239 |
| Tractor | Case-IH | 884 | 84 | I.H. D268 |
| Tractor | John Deere | 1550 (Europe) | 50 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 1750 (Europe) | 50 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 1850 (Europe) | 50 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 1640 (Europe) | 40 | John Deere (DSPG) 4239D |
| Tractor | John Deere | 1840 (Europe) | 40 | John Deere (DSPG) 4239D |
| Tractor | John Deere | 2040 (Europe) | 40 | John Deere (DSPG) 4239D |
| Tractor | John Deere | 2040 (Espana) | 40 | John Deere (DSPG) 4239D |
| Tractor | John Deere | 2040S (Europe) | 40 | John Deere (DSPG) 4239D |
| Tractor | John Deere | 1641 | 41 | ADE (Atlantis Diesel Engines) 236N |
| Tractor | John Deere | 1850 (Espana) | 50 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 2040 | 40 | UNKNOWN |
| Tractor | John Deere | 2040S (Espana) | 40 | John Deere (DSPG) 4239D |
| Tractor | John Deere | 2150 (North America) | 50 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 2240 | 40 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 1140 (Espana) | 40 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 1040 (Europe) | 40 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 1140 (Europe) | 40 | John Deere (DSPG) 3179D |
| Tractor | John Deere | 1640 (Europe) | 40 | |
| Tractor | John Deere | 2040 (Europe) | 40 | |
| Tractor | John Deere | 2040S (Europe) | 40 | |
| Engine | Case-IH | 248 | I.H. D179 | |
| Engine | Case-IH | 258 | I.H. D206 | |
| Engine | Case-IH | 268 | 68 | I.H. D239 |
| Machine | John Deere | 940 | 900 | John Deere (DSPG) 4239D |
