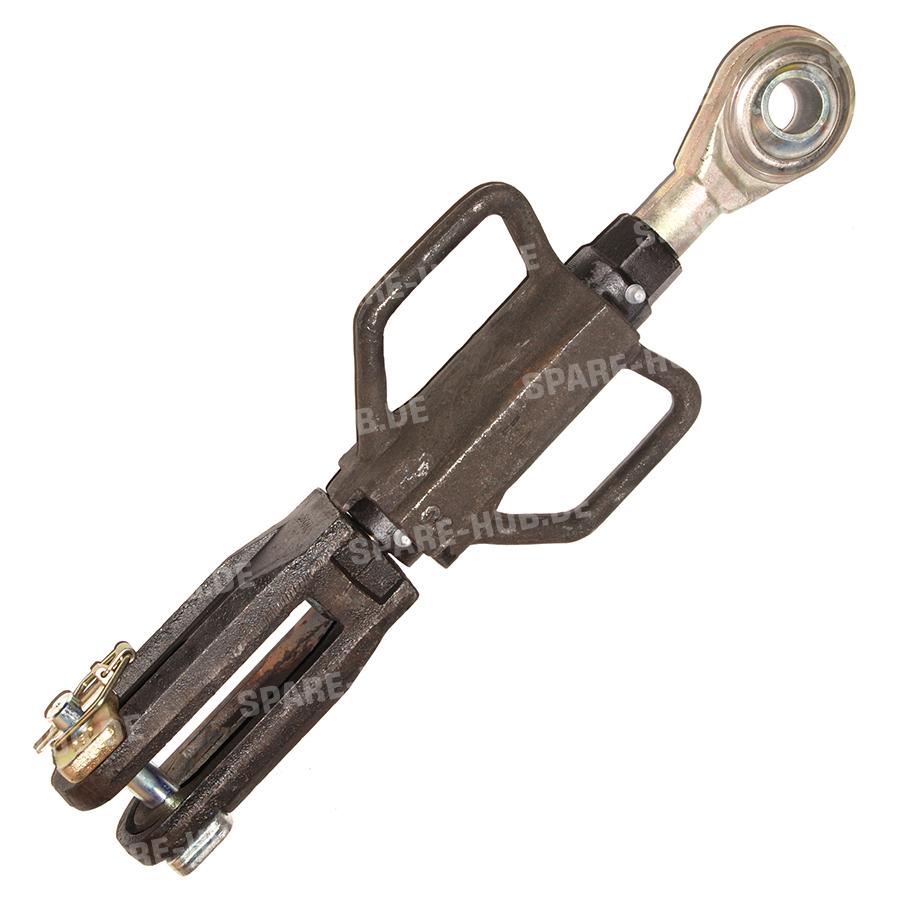

LEVELING ARM (7701647387)
excl. VAT 139.60 €
Shipping
3-7 business days europe-wide via UPS/GLS/DPD/DHL under 25kg. World shipping may vary. Express shipping available upon request. Shipping price calculator kg-based available before payment at checkout.
Warranty
6-months free warranty included in price. Extended warranty up to 36 months for selective categories available upon request.
Payment
Online-payment or proforma-payment with 0%VAT available within the EU after validation of your VAT Nr.
Technical support
Via WhatsApp, Call or E-Mail available in 5 languages for helping you to select the correct spare part and place the order.
Import duties
tax and charges are not included in the price listed or freight cost. These charges are on the buyer's side.
Description

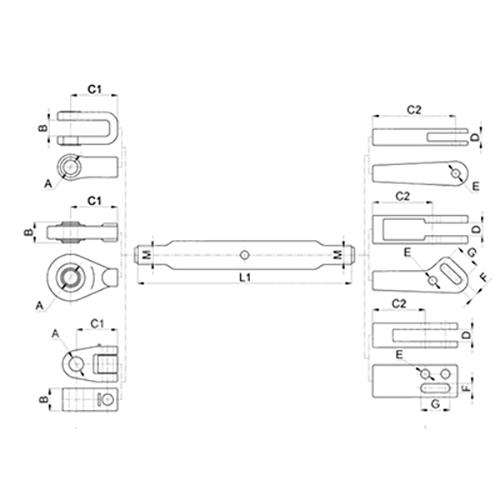

A (mm): 28.5 | B (mm): 45 | C1 (mm): 475 | C2 (mm): 615 | D (mm): 27.6 | F (mm): 19.0 | G (mm): 82.0 | M: M27 x 3.0 | L1 (mm): 220 | L min. (mm): 475 | L max. (mm): 615
Specification
- Reference no. 113027
- Brand Claas / Renault
-
Part number
7701647387
- Weight 10.64 KG
Compatible Vehicles & Equipment
| Type | Make | Model | Series | Engine |
|---|---|---|---|---|
| Tractor | Claas / Renault | 50-12LB | 50 | Deutz F 3L 912 |
| Tractor | Claas / Renault | 50-12V | 50 | Deutz F 3L 912 |
| Tractor | Claas / Renault | 55-12F | 50 | Deutz F 3L 912 |
| Tractor | Claas / Renault | 55-12LB | 50 | Deutz F 3L 912 |
| Tractor | Claas / Renault | 55-12V | 50 | Deutz F 3L 912 |
| Tractor | Claas / Renault | 55-14LB | 50 | Deutz F 3L 912 |
| Tractor | Claas / Renault | 55-14V | 50 | Deutz F 3L 912 |
| Tractor | Claas / Renault | 58-12LS | 50 | MWM D226-3 |
| Tractor | Claas / Renault | 58-14LS | 50 | MWM D226-3 |
| Tractor | Claas / Renault | 58-32 | 50 | MWM D226-3 |
| Tractor | Claas / Renault | 58-34 | 50 | MWM D226-3 |
| Tractor | Claas / Renault | 61-12RA | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 61-12RS | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 61-14RA | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 61-14RS | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 65-12LS | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 65-14LS | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 65-32M | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 65-34M | 60 | MWM D226-3 |
| Tractor | Claas / Renault | 68-12RA | 60 | MWM D227-4 |
| Tractor | Claas / Renault | 68-12RS | 60 | MWM D227-4 |
| Tractor | Claas / Renault | 68-14RA | 60 | MWM D227-4 |
| Tractor | Claas / Renault | 68-14RS | 60 | MWM D227-4 |
| Tractor | Claas / Renault | 70-12F | 70 | Deutz F 4L 912 |
| Tractor | Claas / Renault | 70-12LB | 70 | Deutz F 4L 912 |
| Tractor | Claas / Renault | 70-12SP | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-12V | 70 | Deutz F 4L 912 |
| Tractor | Claas / Renault | 70-14F | 70 | Deutz F 4L 912 |
| Tractor | Claas / Renault | 70-14LB | 70 | Deutz F 4L 912 |
| Tractor | Claas / Renault | 70-14SP | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-14V | 70 | Deutz F 4L 912 |
| Tractor | Claas / Renault | 70-32PA | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-32PE | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-32PS | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-32PX | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-34PA | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-34PE | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-34PS | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 70-34PX | 70 | Perkins A4.236 |
| Tractor | Claas / Renault | 75-12LS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-12RA | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-12RS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-12TS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-14LS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-14RA | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-14RS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-14TS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-32M | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-32TX | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-34M | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 75-34TX | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 77-12TS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 77-14TS | 70 | MWM D226-4 |
| Tractor | Claas / Renault | 80-12F | 80 | Deutz F 4L 913 |
| Tractor | Claas / Renault | 80-12SP | 80 | Perkins A4.248 |
| Tractor | Claas / Renault | 80-12TX | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 80-12V | 80 | Deutz F 4L 913 |
| Tractor | Claas / Renault | 80-14F | 80 | Deutz F 4L 913 |
| Tractor | Claas / Renault | 80-14SP | 80 | Perkins A4.248 |
| Tractor | Claas / Renault | 80-14TX | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 80-14V | 80 | Deutz F 4L 913 |
| Tractor | Claas / Renault | 80-32P | 80 | Perkins A4.248 |
| Tractor | Claas / Renault | 80-34P | 80 | Perkins A4.248 |
| Tractor | Claas / Renault | 85-12LS | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-12TS | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-12TX | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-14LS | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-14TS | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-14TX | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-32M | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-32TX | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-34M | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 85-34TX | 80 | MWM D226-4 |
| Tractor | Claas / Renault | 90-32M | 90 | MWM D226-4 |
| Tractor | Claas / Renault | 90-32TX | 90 | MWM D226-4 |
| Tractor | Claas / Renault | 90-34M | 90 | MWM D226-4 |
| Tractor | Claas / Renault | 90-34TX | 90 | MWM D226-4 |
| Tractor | Claas / Renault | 95-12 | 90 | MWM D226-4 |
| Tractor | Claas / Renault | 95-14 | 90 | MWM D226-4 |
| Tractor | Claas / Renault | 32-50 | 30 | MWM D327-3 |
| Tractor | Claas / Renault | 32-60 | 30 | MWM D327-3 |
| Tractor | Claas / Renault | 44-70 | 40 | MWM D327-4 |
| Tractor | Claas / Renault | 42-70 | 40 | MWM D327-4 |
| Tractor | Claas / Renault | 34-60 | 30 | MWM D327-3 |
| Tractor | Claas / Renault | 95 | Ergos | John Deere (DSPG) 4039T |
| Tractor | Claas / Renault | 90 | Ergos | UNKNOWN |
| Tractor | Claas / Renault | 85 | Ergos | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 110 | Ergos | UNKNOWN |
| Tractor | Claas / Renault | 105 | Ergos | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 100 | Ergos | UNKNOWN |
| Tractor | Claas / Renault | 355 | Cergos | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 350 | Cergos | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 345 | Cergos | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 340 | Cergos | John Deere (DSPG) 4039T |
| Tractor | Claas / Renault | 335 | Cergos | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 330 | Cergos | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 95X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 95 | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 85X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 85 | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 75X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 75 | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 70X | Ceres | MWM D226-3 |
| Tractor | Claas / Renault | 70 | Ceres | MWM D226-3 |
| Tractor | Claas / Renault | 65 | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 355X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 355 | Ceres | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 345X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 345 | Ceres | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 340X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 340 | Ceres | John Deere (DSPG) 4039T |
| Tractor | Claas / Renault | 336 | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 335 | Ceres | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 330X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 330 | Ceres | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 325X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 325 | Ceres | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 320X | Ceres | UNKNOWN |
| Tractor | Claas / Renault | 320 | Ceres | John Deere (DSPG) 4039D |
| Tractor | Claas / Renault | 310 | Ceres | John Deere (DSPG) 3029D |
| Tractor | Claas / Renault | 456 | CELTIS 456-426 RA/RC/RX (A07) | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 446 | CELTIS 456-426 RA/RC/RX (A07) | John Deere (DSPG) 4045T |
| Tractor | Claas / Renault | 436 | CELTIS 456-426 RA/RC/RX (A07) | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 426 | CELTIS 456-426 RA/RC/RX (A07) | John Deere (DSPG) 4045D |
| Tractor | Claas / Renault | 904MIHYD | 900 | MWM D226-4 |
| Tractor | Claas / Renault | 900MIHYD | 900 | MWM D226-4 |
| Tractor | Claas / Renault | 854MIHYD | 800 | MWM D226-4 |
| Tractor | Claas / Renault | 854MI | 800 | MWM D226-4 |
| Tractor | Claas / Renault | 850MIHYD | 800 | MWM D226-4 |
| Tractor | Claas / Renault | 850MI | 800 | MWM D226-4 |
| Tractor | Claas / Renault | 804M | 800 | MWM D226-4 |
| Tractor | Claas / Renault | 800M | 800 | MWM D226-4 |
| Tractor | Claas / Renault | 754MI | 700 | MWM D226-4 |
| Tractor | Claas / Renault | 750MI | 700 | MWM D226-4 |
| Tractor | Claas / Renault | 724M/H | 700 | Perkins Unknown |
| Tractor | Claas / Renault | 720M/H | 700 | Perkins Unknown |
| Tractor | Claas / Renault | 704M/H | 700 | Perkins Unknown |
| Tractor | Claas / Renault | 700M/H | 700 | UNKNOWN |
| Tractor | Claas / Renault | 650MI | 600 | UNKNOWN |
| Tractor | Claas / Renault | 600M | 600 | UNKNOWN |
| Tractor | Claas / Renault | 751 | 700 | MWM D226-4 |
| Tractor | Claas / Renault | 851 | 800 | MWM TD226-4 |
