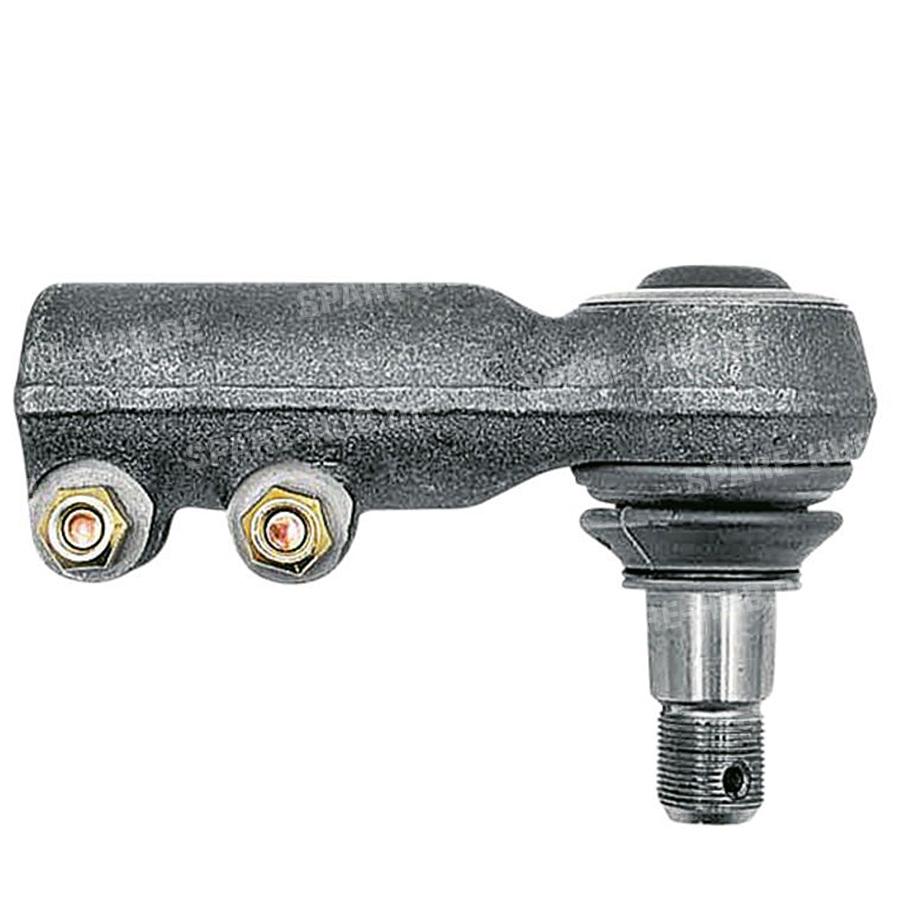

TIE ROD OUTER (1927245ZP)
excl. VAT 56.75 €
Shipping
3-7 business days europe-wide via UPS/GLS/DPD/DHL under 25kg. World shipping may vary. Express shipping available upon request. Shipping price calculator kg-based available before payment at checkout.
Warranty
6-months free warranty included in price. Extended warranty up to 36 months for selective categories available upon request.
Payment
Online-payment or proforma-payment with 0%VAT available within the EU after validation of your VAT Nr.
Technical support
Via WhatsApp, Call or E-Mail available in 5 languages for helping you to select the correct spare part and place the order.
Import duties
tax and charges are not included in the price listed or freight cost. These charges are on the buyer's side.
Description

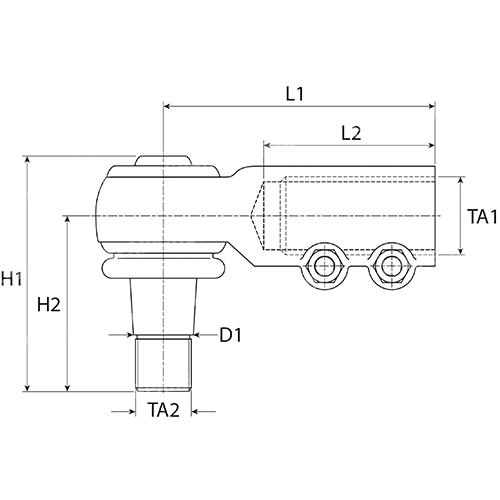

Type: D | Thread type: Metric | Thread - TA1: M36 x 1.5 RH | Thread - TA2: M24 x 1.5 RH | Cone (mm): 27 - 30 | L1 (mm): 150 | L2 (mm): 93 | H1 (mm): 109 | H2 (mm): 91
Specification
- Reference no. 113672
- Brand Case-IH, Fendt
-
Part number
1927245ZP, 81927245, 3134240R91, 3 134 240 R91, 3140943R1, 0.010.3580.0, 1035800, H3134240R91, X800210032000, X800.210.032.000, 1295620, 0129 5620, 01295620, 3134240R92, 3138344, 3140943, 3140943R1N, ... Show more
- Weight 2.12 KG
Compatible Vehicles & Equipment
| Type | Make | Model | Series | Engine |
|---|---|---|---|---|
| Tractor | Case-IH | 1046 | 46 | I.H. D358 |
| Tractor | Case-IH | 1255 | 55 | I.H. DT358 |
| Tractor | Case-IH | 553 | 53 | I.H. D179 |
| Tractor | Case-IH | 654 | 54 | I.H. D206 |
| Tractor | Case-IH | 724 | 24 | I.H. D239 |
| Tractor | Case-IH | 824 | 24 | I.H. D246 |
| Tractor | Case-IH | 1455 | 55 | I.H. DT402 |
| Tractor | Case-IH | 946 | 46 | I.H. D310 |
| Tractor | Case-IH | 1255XL | 55 | I.H. DT358 |
| Tractor | Case-IH | 1455XL | 55 | I.H. DT402 |
| Tractor | Fendt | 102S | Farmer 100 | MWM D325-3 |
| Tractor | Fendt | 103 | Farmer 100 | MWM D225-3 |
| Tractor | Fendt | 104S | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 104LS | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 104LSA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 105LS | Farmer 100 | MWM D226-4.2 |
| Tractor | Fendt | 105LSA | Farmer 100 | MWM D225-4.2 |
| Tractor | Fendt | 102 | Farmer 100 | MWM D325-3 |
| Tractor | Fendt | 102SA | Farmer 100 | MWM D325-3 |
| Tractor | Fendt | 102S | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 102SA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 102LS | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 102LSA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 103S | Farmer 100 | MWM D225-3 |
| Tractor | Fendt | 103SA | Farmer 100 | MWM D225-3 |
| Tractor | Fendt | 103S | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 103SA | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 103LS | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 103LSA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 104SA | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 104S | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 104SA | Farmer 100 | MWM D226-3.2 |
| Tractor | Fendt | 105 | Farmer 100 | MWM D226-3 |
| Tractor | Fendt | 105SA | Farmer 100 | MWM D225-4 |
| Tractor | Fendt | 105S | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 105SA | Farmer 100 | MWM D226-4 |
| Tractor | Fendt | 105S | Farmer 100 | MWM D225-4 |
| Tractor | Fendt | 105SA | Farmer 100 | MWM D225-4.2 |
