- TIE ROD OUTER (5109530)

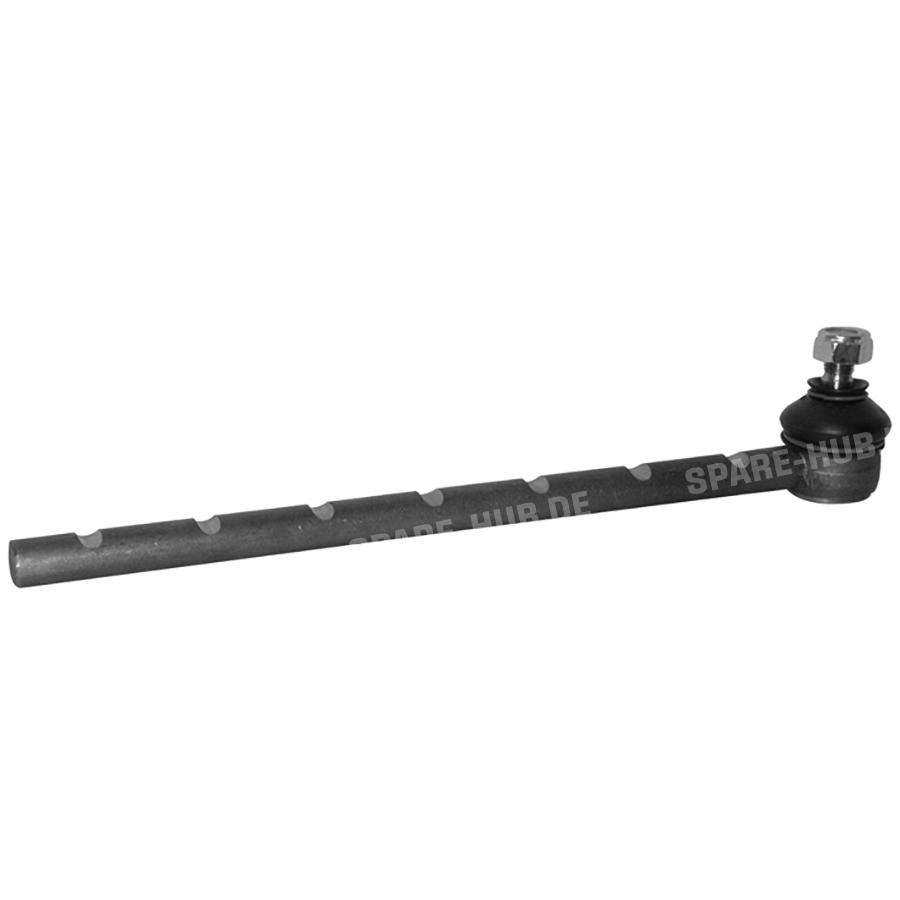

TIE ROD OUTER (5109530)
excluido IVA 44.17 €
Envío
3-7 días laborables en toda Europa a través de UPS/GLS/DPD/DHL para envíos de menos de 25 kg. El envío mundial puede variar. Envío exprés disponible bajo petición. La calculadora de precios de envío basada en los kg está disponible antes del pago al finalizar la compra (checkout).
Garantía
Garantía gratuita de 6 meses incluida en el precio. Garantía extendida de hasta 36 meses para categorías seleccionadas, disponible bajo petición.
Pago
Pago online o pago mediante factura proforma con 0? IVA disponible dentro de la UE tras la validación de su número de IVA (NIF-IVA).
Soporte técnico
Disponible a través de WhatsApp, llamada o correo electrónico en 5 idiomas para ayudarle a seleccionar el repuesto correcto y realizar el pedido.
Aranceles de importación
Los impuestos y cargos no están incluidos en el precio indicado ni en los gastos de envío. Estos cargos corren por cuenta del comprador.
Descripción

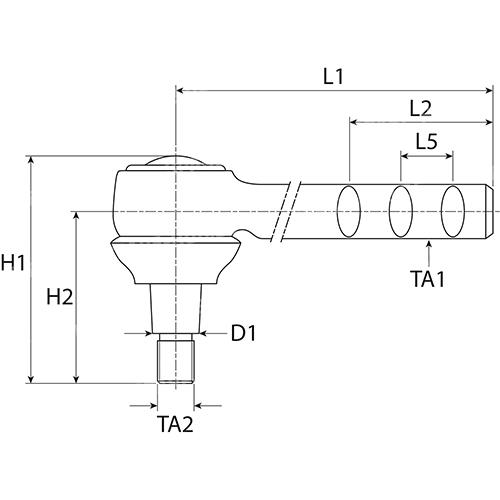

Type: V | Thread type: Inch | Thread - TA2: 5/8 UNF | Cone (mm): 16 - 18 | L1 (mm): 640 | L2 (mm): 590 | H1 (mm): 84 | H2 (mm): 70 | Angle: 270 | Number of holes: 6 | Hole Ø: 9
Especificación
- Numero de referencia. 117109
- Marca Case-IH, Fiat, New Holland, Ford
-
Número de pieza
5109530, 4998975, 5085085, SF4998975, VPJ3164
- Peso 1.94 KG
Compatible Vehicles & Equipment
| Type | Make | Model | Series | Engine |
|---|---|---|---|---|
| Tractor | Case-IH | AVJ55 | AVJ | Iveco 8035.06 |
| Tractor | Case-IH | AVJ60 | AVJ | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | AVJ70 | AVJ | Iveco 8045.06 |
| Tractor | Case-IH | 1060V | JXV | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | 1070N | JXN | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 1070V | JXV | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 1075N | JXN | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 1075V | JXV | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 1095N | JXN | Iveco 8045.25 (FPT) |
| Tractor | Case-IH | 1095V | JXV | Iveco 8045.25 (FPT) |
| Tractor | Case-IH | 55 | JX | Iveco 8035.06 |
| Tractor | Case-IH | 60 | JX | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | 65 | JX | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | 70 | JX | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 75 | JX | Iveco 8045.06 |
| Tractor | Case-IH | 80 | JX | Iveco 8045.05 (FPT) |
| Tractor | Case-IH | 85 | JX | Iveco 8045.05 (FPT) |
| Tractor | Case-IH | 90 | JX | Iveco 8045.05 (FPT) |
| Tractor | Case-IH | 95 | JX | Iveco 8045.05 (FPT) |
| Tractor | Case-IH | VJ60 | VJ | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | VJ70 | VJ | Iveco 8045.06 |
| Tractor | Case-IH | VJ80 | VJ | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 466 | 66 | Iveco 8035.02 |
| Tractor | Fiat | 566 | 66 | Iveco 8035.04 |
| Tractor | Fiat | 570 | Someca | Iveco 8035.04 |
| Tractor | Fiat | 580 | Someca | Iveco 8035.04 |
| Tractor | Fiat | 670 | Someca | Iveco 8045.02 |
| Tractor | Fiat | 680 | Someca | Iveco 8045.02 |
| Tractor | Fiat | 766 | 66 | Iveco 8045.04 |
| Tractor | Fiat | 780 | Someca | Iveco 8045.04 |
| Tractor | Fiat | 980 | Someca | Iveco 8065.02 |
| Tractor | Fiat | F100Dal | Winner | Iveco 8065.05 |
| Tractor | Fiat | F100Fino | Winner | Iveco 8065.06 |
| Tractor | Fiat | F110 | Winner | Iveco 8065.05 |
| Tractor | Fiat | F115 | Winner | Iveco 8065.05R |
| Tractor | Fiat | F120 | Winner | Iveco 8065.05 |
| Tractor | Fiat | F130 | Winner | Iveco 8065.25 |
| Tractor | Fiat | F140 | Winner | Iveco 8065.25S |
| Tractor | Fiat | 100-90 | 90 | Iveco 8065.06 |
| Tractor | Fiat | 100-90DT | 90 | Iveco 8065.06 |
| Tractor | Fiat | 110-90DT | 90 | Iveco 8065.05 |
| Tractor | Fiat | 110-90 | 90 | Iveco 8065.05 |
| Tractor | Fiat | 45-66 | 66 | Iveco 8035.06 |
| Tractor | Fiat | 466DT | 66 | Iveco 8035.02 |
| Tractor | Fiat | 50-66 | 66 | Iveco 8035.06 |
| Tractor | Fiat | 55-46 | 46 | Iveco 8035.06 |
| Tractor | Fiat | 55-56 | 56 | Iveco 8035.06 |
| Tractor | Fiat | 55-56DT | 56 | Iveco 8035.06 |
| Tractor | Fiat | 55-66 | 66 | Iveco 8035.06 |
| Tractor | Fiat | 55-76F | 76 | Iveco 8035.06 |
| Tractor | Fiat | 55-76V | 76 | Iveco 8035.06 |
| Tractor | Fiat | 55-88 | 88 | Iveco 8035.06 |
| Tractor | Fiat | 55-90 | 90 | Iveco 8035.06 |
| Tractor | Fiat | 60-46 | 46 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-66 | 66 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-76F | 76 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-86F | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-86V | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-88 | 88 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-90 | 90 | Iveco 8035.05 |
| Tractor | Fiat | 60-93 | 93 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-93DT | 93 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-94 | 94 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 65-46 | 46 | Iveco 8045.06 |
| Tractor | Fiat | 65-46DT | 46 | Iveco 8045.06 |
| Tractor | Fiat | 65-56DT | 56 | Iveco 8045.06 |
| Tractor | Fiat | 65-56 | 56 | Iveco 8045.06 |
| Tractor | Fiat | 65-88 | 88 | Iveco 8045.06 |
| Tractor | Fiat | 65-88DT | 88 | Iveco 8045.06 |
| Tractor | Fiat | 65-90 | 90 | Iveco 8045.06 |
| Tractor | Fiat | 65-90DT | 90 | Iveco 8045.06 |
| Tractor | Fiat | 65-93 | 93 | Iveco 8045.06 |
| Tractor | Fiat | 65-93DT | 93 | Iveco 8045.06 |
| Tractor | Fiat | 65-94 | 94 | Iveco 8045.06 |
| Tractor | Fiat | 65-94DT | 94 | Iveco 8045.06 |
| Tractor | Fiat | 70-56DT | 56 | Iveco 8045.06 |
| Tractor | Fiat | 70-56L | 56 | Iveco 8045.06 |
| Tractor | Fiat | 70-66 | 66 | Iveco 8045.06 |
| Tractor | Fiat | 70-76DT | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-76F | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-76LP | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-76V | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-88 | 88 | Iveco 8045.06 |
| Tractor | Fiat | 70-88DT | 88 | Iveco 8045.06 |
| Tractor | Fiat | 70-90 | 90 | Iveco 8045.06 |
| Tractor | Fiat | 70-90DT | 90 | Iveco 8045.06 |
| Tractor | Fiat | 72-93 | 93 | Iveco 8045.06 |
| Tractor | Fiat | 72-93DT | 93 | Iveco 8045.06 |
| Tractor | Fiat | 72-94 | 94 | Iveco 8045.06 |
| Tractor | Fiat | 72-94DT | 94 | Iveco 8045.06 |
| Tractor | Fiat | 80-66 | 66 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-88 | 88 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-88DT | 88 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-90 | 90 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-90DT | 90 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-86DT | 86 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-86F | 86 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-86LP | 86 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-93 | 93 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-93DT | 93 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-94 | 94 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-94DT | 94 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 85-90 | 90 | Iveco 8045.25 (FPT) |
| Tractor | Fiat | 85-90DT | 90 | Iveco 8045.25 (FPT) |
| Tractor | Fiat | 90-90 | 90 | Iveco 8055.05 |
| Tractor | Fiat | 90-90DT | 90 | Iveco 8055.05 |
| Tractor | Fiat | 650 | Someca | UNKNOWN |
| Tractor | Fiat | 880 | Someca | Someca OM CO 3/75 |
| Tractor | Fiat | 55-86F | 86 | Iveco 8035.06 |
| Tractor | Fiat | 55-86V | 86 | Iveco 8035.06 |
| Tractor | Fiat | 55-46DT | 46 | Iveco 8035.06 |
| Tractor | Fiat | 55-76FDT | 76 | Iveco 8035.06 |
| Tractor | Fiat | 55-76VDT | 76 | Iveco 8035.06 |
| Tractor | Fiat | 55-86FDT | 86 | UNKNOWN |
| Tractor | Fiat | 55-86VDT | 86 | UNKNOWN |
| Tractor | Fiat | 55-88DT | 88 | Iveco 8035.06 |
| Tractor | Fiat | 55-90 DT | 90 | Iveco 8035.06 |
| Tractor | Fiat | 60-46DT | 46 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-76FDT | 76 | Iveco 8035.05 |
| Tractor | Fiat | 60-86FDT | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-86VDT | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-88DT | 88 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | New Holland | TD55D | TDD | Iveco 8035.06 |
| Tractor | New Holland | TD75D | TDD | Iveco 8045.06 (Tier1) |
| Tractor | New Holland | TD85D | TDD | Iveco 8045.05 (Tier2) |
| Tractor | New Holland | TD95D | TDD | Iveco 8045.25 (Tier2) |
| Tractor | New Holland | TD80D | TDD | Iveco 8045.05 (Tier2) |
| Tractor | New Holland | TD90D | TDD | Iveco 8045.25 (Tier2) |
| Tractor | New Holland | TD60D | TDD | Iveco 8035.05 (Tier2) |
| Tractor | New Holland | TD70D | TDD | Iveco 8035.25 (Tier1) |
| Tractor | New Holland | TD95 | TD | Iveco 8045.25 (FPT) |
| Tractor | New Holland | TD90 | TD | Iveco 8045.25 (FPT) |
| Tractor | New Holland | TD80 | TD | Iveco 8045.05 (TTF) Tier2 |
| Tractor | New Holland | TD70 | TD | Iveco 8035.25 (TTF) Tier2 |
| Tractor | New Holland | TD60 | TD | Iveco 8035.05 (FPT) Tier2 |
| Tractor | New Holland | TD5010 | TD5000 | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | TD5020 | TD5000 | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | TD5030 | TD5000 | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | TD5040 | TD5000 | FPT NEF 445TA/M (Tier3) |
| Tractor | New Holland | TD5050 | TD5000 | FPT NEF 445TA/M (Tier3) |
| Tractor | Fiat | 666 | 66 | Iveco 8045.02 |
| Tractor | Ford | 3435 (2WD) | 35 | Iveco 8035.06 |
| Tractor | Ford | 3935 (2WD) | 35 | Iveco 8035.06 |
| Tractor | Ford | 4135 (2WD) | 35 | Iveco 8035.06 |
| Tractor | Fiat | 56-66S | 66 | Iveco 8035.06 |
| Tractor | Fiat | 65-66 | 66 | Iveco 8045.06 |
| Tractor | Fiat | 72-86LP | 86 | Iveco 8045.06 |
| Tractor | Fiat | 88-93 | 93 | Iveco 8045.25 (FPT) |
| Tractor | Fiat | 88-94 | 94 | Iveco 8045.25 (FPT) |
| Tractor | New Holland | T3.50F | T3F | FPT S8000 (2.9L) Tier3 |
| Tractor | New Holland | T3.55F | T3F | FPT S8000 (2.9L) Tier3 |
| Tractor | New Holland | T3.65F | T3F | FPT S8000 (2.9L) Tier3 |
| Tractor | New Holland | T3.75F | T3F | FPT S8000 (2.9L) Tier3 |
| Tractor | New Holland | TD5.100 | TD5 | FPT S8000 (3.9L) Tier3 |
| Tractor | New Holland | TD5.65 | TD5 | FPT S8000 (2.9L) Tier3 |
| Tractor | New Holland | TD5.75 | TD5 | UNKNOWN |
| Tractor | New Holland | TD5.80 | TD5 | FPT S8000 (2.9L) Tier3 |
| Tractor | New Holland | TD5.85 | TD5 | UNKNOWN |
| Tractor | New Holland | TD5.90 | TD5 | FPT S8000 (3.9L) Tier3 |
| Tractor | New Holland | TD5.95 | TD5 | UNKNOWN |
| Tractor | New Holland | TD60D Plus | TDD | Iveco 8035.05 (TTF) Tier2 |
| Tractor | New Holland | TD65F | TDF | Iveco 8035.25 (Tier2) |
| Tractor | New Holland | TD70D Plus | TDD | UNKNOWN |
| Tractor | New Holland | TD75F | TDF | Iveco 8035.25 (Tier2) |
| Tractor | New Holland | TD80D Plus | TDD | UNKNOWN |
| Tractor | New Holland | TD85F | TDF | UNKNOWN |
| Tractor | New Holland | TD90D Plus | TDD | UNKNOWN |
| Tractor | New Holland | TD95D Plus | TDD | UNKNOWN |
| Tractor | New Holland | TT50 | TT | Iveco 8035.05 Trem3 |
| Tractor | New Holland | TT55 | TT | Iveco 8035.05 Trem3 |
| Tractor | New Holland | TT65 | TT | Iveco 8035.25 (Tier1) |
| Tractor | New Holland | TT65D | TT | Iveco 8035.25 (Tier1) |
| Tractor | New Holland | TT75 | TT | Iveco 8035.25 (Tier1) |
| Tractor | Case-IH | 100JX | Farmall JX | FPT S8000 (2.9L) Tier3 |
| Tractor | Case-IH | 65A | Farmall | FPT S8000 (2.9L) Tier3 |
| Tractor | Case-IH | 70JX | Farmall JX | FPT S8000 (2.9L) Tier3 |
| Tractor | Case-IH | 75A | Farmall | FPT S8000 (2.9L) Tier3 |
| Tractor | Case-IH | 75JX | Farmall JX | FPT S8000 (2.9L) Tier3 |
| Tractor | Case-IH | 80JX | Farmall JX | FPT S8000 (2.9L) Tier3 |
| Tractor | Case-IH | 85A | Farmall | FPT F5C (3.2L) Stage3A |
| Tractor | Case-IH | 90JX | Farmall JX | FPT S8000 (2.9L) Tier3 |
| Tractor | Case-IH | 95A | Farmall | Ford Unknown |
