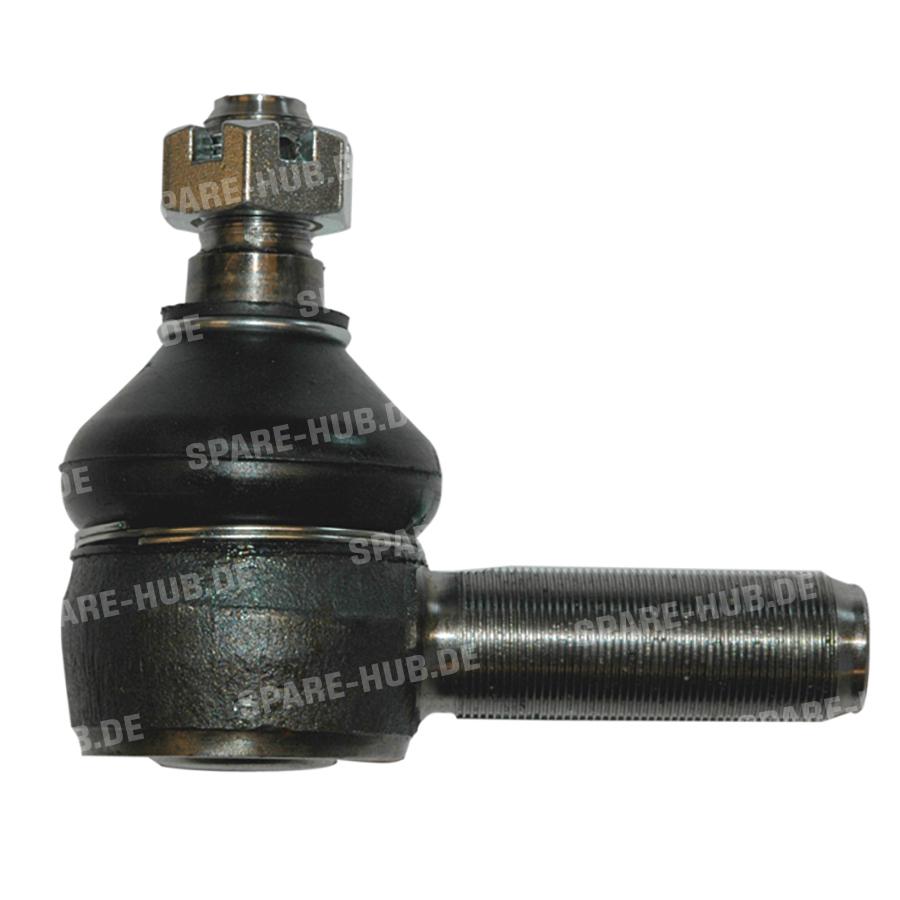

TIE ROD OUTER (87569214)
excluido IVA 18.70 €
Envío
3-7 días laborables en toda Europa a través de UPS/GLS/DPD/DHL para envíos de menos de 25 kg. El envío mundial puede variar. Envío exprés disponible bajo petición. La calculadora de precios de envío basada en los kg está disponible antes del pago al finalizar la compra (checkout).
Garantía
Garantía gratuita de 6 meses incluida en el precio. Garantía extendida de hasta 36 meses para categorías seleccionadas, disponible bajo petición.
Pago
Pago online o pago mediante factura proforma con 0? IVA disponible dentro de la UE tras la validación de su número de IVA (NIF-IVA).
Soporte técnico
Disponible a través de WhatsApp, llamada o correo electrónico en 5 idiomas para ayudarle a seleccionar el repuesto correcto y realizar el pedido.
Aranceles de importación
Los impuestos y cargos no están incluidos en el precio indicado ni en los gastos de envío. Estos cargos corren por cuenta del comprador.
Descripción

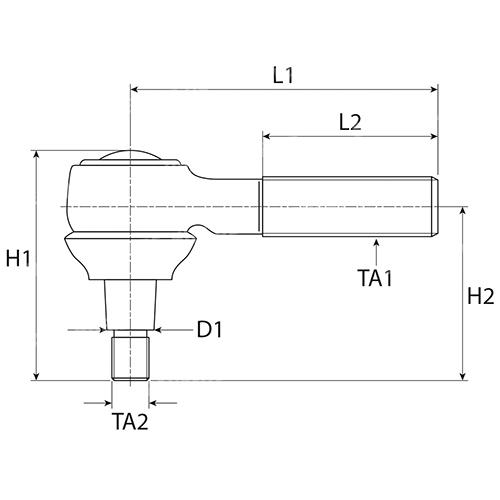

Type: A | Thread type: Metric | Thread - TA1: M20 x 1.0 RH | Thread - TA2: M14 x 1.5 RH | Cone (mm): 16 - 18 | L1 (mm): 75 | L2 (mm): 54 | H1 (mm): 84 | H2 (mm): 70
Especificación
- Numero de referencia. 116581
- Marca Case-IH, Fiat, New Holland, Ford
-
Número de pieza
87569214, 5109526, 4954941, 4987961, S63167, VPJ3162
- Peso 0.51 KG
Compatible Vehicles & Equipment
| Type | Make | Model | Series | Engine |
|---|---|---|---|---|
| Tractor | Case-IH | AVJ55 | AVJ | Iveco 8035.06 |
| Tractor | Case-IH | AVJ60 | AVJ | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | AVJ70 | AVJ | Iveco 8045.06 |
| Tractor | Case-IH | 1060V | JXV | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | 1070N | JXN | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 1070V | JXV | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 1075N | JXN | Iveco 8035.25 (FPT) |
| Tractor | Case-IH | 1095N | JXN | Iveco 8045.25 (FPT) |
| Tractor | Case-IH | 1095V | JXV | Iveco 8045.25 (FPT) |
| Tractor | Case-IH | 80 | JX | Iveco 8045.05 (FPT) |
| Tractor | Case-IH | 90 | JX | Iveco 8045.05 (FPT) |
| Tractor | Case-IH | 95 | JX | Iveco 8045.05 (FPT) |
| Tractor | Case-IH | VJ60 | VJ | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | VJ70 | VJ | Iveco 8045.06 |
| Tractor | Case-IH | VJ80 | VJ | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 466 | 66 | Iveco 8035.02 |
| Tractor | Fiat | 566 | 66 | Iveco 8035.04 |
| Tractor | Fiat | 570 | Someca | Iveco 8035.04 |
| Tractor | Fiat | 580 | Someca | Iveco 8035.04 |
| Tractor | Fiat | 666 | 66 | Iveco 8045.02 |
| Tractor | Fiat | 670 | Someca | Iveco 8045.02 |
| Tractor | Fiat | 680 | Someca | Iveco 8045.02 |
| Tractor | Fiat | 766 | 66 | Iveco 8045.04 |
| Tractor | Fiat | 780 | Someca | Iveco 8045.04 |
| Tractor | Fiat | 980 | Someca | Iveco 8065.02 |
| Tractor | Fiat | F100Dal | Winner | Iveco 8065.05 |
| Tractor | Fiat | F100Fino | Winner | Iveco 8065.06 |
| Tractor | Fiat | 100-90 | 90 | Iveco 8065.06 |
| Tractor | Fiat | 100-90DT | 90 | Iveco 8065.06 |
| Tractor | Fiat | 110-90DT | 90 | Iveco 8065.05 |
| Tractor | Fiat | 110-90 | 90 | Iveco 8065.05 |
| Tractor | Fiat | 350DT | Someca | Iveco 8025.02 |
| Tractor | Fiat | 45-66 | 66 | Iveco 8035.06 |
| Tractor | Fiat | 466DT | 66 | Iveco 8035.02 |
| Tractor | Fiat | 500DT | Someca | Iveco 8035.02 |
| Tractor | Fiat | 50-66 | 66 | Iveco 8035.06 |
| Tractor | Fiat | 55-46 | 46 | Iveco 8035.06 |
| Tractor | Fiat | 55-56 | 56 | Iveco 8035.06 |
| Tractor | Fiat | 55-56DT | 56 | Iveco 8035.06 |
| Tractor | Fiat | 55-66 | 66 | Iveco 8035.06 |
| Tractor | Fiat | 55-76F | 76 | Iveco 8035.06 |
| Tractor | Fiat | 55-76V | 76 | Iveco 8035.06 |
| Tractor | Fiat | 55-88 | 88 | Iveco 8035.06 |
| Tractor | Fiat | 55-90 | 90 | Iveco 8035.06 |
| Tractor | Fiat | 60-46 | 46 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-66 | 66 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-76F | 76 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-86F | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-86V | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-88 | 88 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-90 | 90 | Iveco 8035.05 |
| Tractor | Fiat | 60-93 | 93 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-93DT | 93 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-94 | 94 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 65-46 | 46 | Iveco 8045.06 |
| Tractor | Fiat | 65-46DT | 46 | Iveco 8045.06 |
| Tractor | Fiat | 65-56DT | 56 | Iveco 8045.06 |
| Tractor | Fiat | 65-56 | 56 | Iveco 8045.06 |
| Tractor | Fiat | 65-88 | 88 | Iveco 8045.06 |
| Tractor | Fiat | 65-88DT | 88 | Iveco 8045.06 |
| Tractor | Fiat | 65-90 | 90 | Iveco 8045.06 |
| Tractor | Fiat | 65-90DT | 90 | Iveco 8045.06 |
| Tractor | Fiat | 65-93 | 93 | Iveco 8045.06 |
| Tractor | Fiat | 65-93DT | 93 | Iveco 8045.06 |
| Tractor | Fiat | 65-94 | 94 | Iveco 8045.06 |
| Tractor | Fiat | 65-94DT | 94 | Iveco 8045.06 |
| Tractor | Fiat | 70-56DT | 56 | Iveco 8045.06 |
| Tractor | Fiat | 70-56L | 56 | Iveco 8045.06 |
| Tractor | Fiat | 70-66 | 66 | Iveco 8045.06 |
| Tractor | Fiat | 70-76DT | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-76F | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-76LP | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-76V | 76 | Iveco 8045.06 |
| Tractor | Fiat | 70-88 | 88 | Iveco 8045.06 |
| Tractor | Fiat | 70-88DT | 88 | Iveco 8045.06 |
| Tractor | Fiat | 70-90 | 90 | Iveco 8045.06 |
| Tractor | Fiat | 70-90DT | 90 | Iveco 8045.06 |
| Tractor | Fiat | 72-93 | 93 | Iveco 8045.06 |
| Tractor | Fiat | 72-93DT | 93 | Iveco 8045.06 |
| Tractor | Fiat | 72-94 | 94 | Iveco 8045.06 |
| Tractor | Fiat | 72-94DT | 94 | Iveco 8045.06 |
| Tractor | Fiat | 80-66 | 66 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-88 | 88 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-88DT | 88 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-90 | 90 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 80-90DT | 90 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-86DT | 86 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-86F | 86 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-86LP | 86 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-93 | 93 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-93DT | 93 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-94 | 94 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-94DT | 94 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 85-90 | 90 | Iveco 8045.25 (FPT) |
| Tractor | Fiat | 85-90DT | 90 | Iveco 8045.25 (FPT) |
| Tractor | Fiat | 90-90 | 90 | Iveco 8055.05 |
| Tractor | Fiat | 90-90DT | 90 | Iveco 8055.05 |
| Tractor | Fiat | 650 | Someca | UNKNOWN |
| Tractor | Fiat | 750 | Someca | Someca OM CO 3/70 |
| Tractor | Fiat | 880 | Someca | Someca OM CO 3/75 |
| Tractor | Fiat | 55-86F | 86 | Iveco 8035.06 |
| Tractor | Fiat | 55-86V | 86 | Iveco 8035.06 |
| Tractor | Fiat | 55-46DT | 46 | Iveco 8035.06 |
| Tractor | Fiat | 55-86VDT | 86 | UNKNOWN |
| Tractor | Fiat | 55-88DT | 88 | Iveco 8035.06 |
| Tractor | Fiat | 55-90 DT | 90 | Iveco 8035.06 |
| Tractor | Fiat | 60-46DT | 46 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-76FDT | 76 | Iveco 8035.05 |
| Tractor | Fiat | 60-86FDT | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-86VDT | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-88DT | 88 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Case-IH | 95V | Quantum | UNKNOWN |
| Tractor | Case-IH | 95N | Quantum | UNKNOWN |
| Tractor | Case-IH | 85V | Quantum | FPT F5C (3.2L) Stage3A |
| Tractor | Case-IH | 85N | Quantum | UNKNOWN |
| Tractor | Case-IH | 75V | Quantum | UNKNOWN |
| Tractor | Case-IH | 75N | Quantum | UNKNOWN |
| Tractor | Case-IH | 65V | Quantum | UNKNOWN |
| Tractor | Case-IH | 105V | Quantum | UNKNOWN |
| Tractor | Case-IH | 105N | Quantum | UNKNOWN |
| Tractor | Case-IH | 1075V | JXV | Iveco 8035.25 (FPT) |
| Tractor | New Holland | TN95VA | TNVA | Iveco 8045.25 (Tier2) |
| Tractor | New Holland | TN95NA | TNNA | Iveco 8045.25 (Tier2) |
| Tractor | New Holland | TN75VA | TNVA | Iveco 8035.25 (Tier2) |
| Tractor | New Holland | TN75V | TNV | Iveco 8035.25 (Tier1) |
| Tractor | New Holland | TN75NA | TNNA | Iveco 8035.25 (Tier2) |
| Tractor | New Holland | TN75N | TNN | Iveco 8035.25 (Tier1) |
| Tractor | New Holland | TN70VA | TNVA | Iveco 8035.25 (Tier2) |
| Tractor | New Holland | TN70NA | TNNA | Iveco 8035.25 (Tier2) |
| Tractor | New Holland | TN65V | TNV | Iveco 8035.05 (Tier1) |
| Tractor | New Holland | TN65N | TNN | Iveco 8035.05 (Tier1) |
| Tractor | New Holland | TN60VA | TNVA | Iveco 8035.05 (Tier2) |
| Tractor | New Holland | TN55V | TNV | Iveco 8035.05 (Tier1) |
| Tractor | New Holland | TD95D Plus | TDD | UNKNOWN |
| Tractor | New Holland | TD95D | TDD | Iveco 8045.25 (Tier2) |
| Tractor | New Holland | TD90D Plus | TDD | UNKNOWN |
| Tractor | New Holland | TD90D | TDD | Iveco 8045.25 (Tier2) |
| Tractor | New Holland | TD80D Plus | TDD | UNKNOWN |
| Tractor | New Holland | TD80D | TDD | Iveco 8045.05 (Tier2) |
| Tractor | New Holland | TD75D | TDD | Iveco 8045.06 (Tier1) |
| Tractor | New Holland | T4060V | T4000V | FPT NEF 445TA/M (Tier3) |
| Tractor | New Holland | T4060N | T4000N | FPT NEF 445TA/M (Tier3) |
| Tractor | New Holland | T4050V | T4000V | FPT NEF 445TA/M (Tier3) |
| Tractor | New Holland | T4050N | T4000N | FPT NEF 445TA/M (Tier3) |
| Tractor | New Holland | T4040V | T4000V | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4040N | T4000N | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4030V | T4000V | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4030N | T4000N | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4020V | T4000V | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4.95 V | T4 | UNKNOWN |
| Tractor | New Holland | T4.90F | T4 | FPT F5D (3.4L) Tier4A |
| Tractor | New Holland | T4.85 V/N/F | T4 | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4.75 V/N/F | T4 | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4.65 V | T4 | FPT F5C (3.2L) Stage3A |
| Tractor | New Holland | T4.105 V | T4 | UNKNOWN |
| Tractor | Fiat | F140 | Winner | Iveco 8065.25S |
| Tractor | Fiat | F130 | Winner | Iveco 8065.25 |
| Tractor | Fiat | F120 | Winner | Iveco 8065.05 |
| Tractor | Fiat | F115 | Winner | Iveco 8065.05R |
| Tractor | Fiat | F110 | Winner | Iveco 8065.05 |
| Tractor | Fiat | F100 | Winner | Iveco 8065.06 |
| Tractor | Fiat | 88-94 | 94 | Iveco 8045.25 (FPT) |
| Tractor | Fiat | 88-93 | 93 | Iveco 8045.25 (FPT) |
| Tractor | Fiat | 80-76F | 76 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 82-86FDT | 86 | Iveco 8045.05 (FPT) |
| Tractor | Fiat | 72-86LP | 86 | Iveco 8045.06 |
| Tractor | Fiat | 72-86F | 86 | Iveco 8045.06 |
| Tractor | Fiat | 70-86VDT | 86 | Iveco 8045.06 |
| Tractor | Fiat | 70-86V | 86 | Iveco 8045.06 |
| Tractor | Fiat | 70-86SVDT | 86 | Iveco 8045.06 |
| Tractor | Fiat | 70-86SV | 86 | Iveco 8045.06 |
| Tractor | Fiat | 70-56 | 56 | Iveco 8045.06 |
| Tractor | Fiat | 65-66 | 66 | Iveco 8045.06 |
| Tractor | Fiat | 62-86F | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 60-86SV | 86 | Iveco 8035.05 (FPT) Tier2 |
| Tractor | Fiat | 56-66S | 66 | Iveco 8035.06 |
| Tractor | Fiat | 55-86SV | 86 | Iveco 8035.06 |
| Tractor | Fiat | 55-86FDT | 86 | UNKNOWN |
| Tractor | Fiat | 55-76VDT | 76 | Iveco 8035.06 |
| Tractor | Fiat | 55-76FDT | 76 | Iveco 8035.06 |
| Tractor | Fiat | 50-86V | 86 | Iveco 8035.06 |
| Tractor | Fiat | 50-86SV | 86 | Iveco 8035.06 |
| Tractor | Fiat | 45-76V | 76 | Iveco 8035.06 |
| Tractor | Fiat | 35-66 | 66 | Lombardini LDW 1503 |
| Tractor | Ford | 4430 (2WD) | 30 | Iveco 8045.05 (Tier2) |
| Tractor | Ford | 4230 (2WD) | 30 | Iveco 8045.06 |
| Tractor | Ford | 4135 (2WD) | 35 | Iveco 8035.06 |
| Tractor | Ford | 3935 (2WD) | 35 | Iveco 8035.06 |
| Tractor | Ford | 4030 (2WD) | 30 | Iveco 8035.05 |
| Tractor | Ford | 3830 (2WD) | 30 | Iveco 8035.06 |
| Tractor | Ford | 3435 (2WD) | 35 | Iveco 8035.06 |
¿Tiene alguna pregunta sobre este artículo? ¡Envíe una solicitud!
Maxim
Su consultor técnico
info@spare-hub.de
Hablamos: alemán, inglés, rumano, español, griego, húngaro, italiano.
Maxim
Su consultor técnicoHablamos: alemán, inglés, rumano, español, griego, húngaro, italiano.
Productos similares
